Choosing the right HDPE pipe for your project is one of the most important decisions you can make. The correct pipe size and pressure rating help your system perform properly, reduce maintenance issues, and increase long-term durability.
One of the biggest misunderstandings in HDPE piping is sizing standards. In North America, HDPE pipe is primarily manufactured and sold using IPS (Iron Pipe Size) standards — not metric sizing. While metric HDPE pipe exists, it is rarely used in most North American water, industrial, irrigation, and mining applications.
This guide explains HDPE pipe dimensions using the IPS sizing system commonly used across Canada and the United States.
Understanding SDR (Standard Dimension Ratio)
The strength and pressure capacity of HDPE pipe are determined by its SDR (Standard Dimension Ratio).
SDR compares the pipe’s outside diameter to its wall thickness:
SDR = \frac{Outside\ Diameter}{Wall\ Thickness}
A lower SDR number means a thicker wall and a higher pressure rating.
Here are some common SDR ratings used with PE4710 HDPE pipe in North America:
| SDR Rating | Typical Pressure Rating | Common Applications | Wall Thickness |
|---|---|---|---|
| DR32.5 | 64 psi | Low-pressure drainage and irrigation | Thin wall |
| DR26 | 80 psi | Agricultural irrigation, drainage | Light-duty |
| DR21 | 100 psi | Rural water systems | Medium wall |
| DR17 | 125 psi | Municipal water distribution | Standard pressure |
| DR13.5 | 160 psi | Industrial piping and force mains | Thick wall |
| DR11 | 200 psi | Water mains, geothermal, natural gas | Heavy-duty |
| DR9 | 250 psi | High-pressure industrial systems | Extra-heavy wall |
Pressure ratings are based on water service at 73°F and may vary depending on fluid type and temperature.
IPS HDPE Pipe Dimensions Chart
Below is a simplified IPS HDPE pipe dimensions chart based on common PE4710 pipe sizes used throughout North America.
Common IPS HDPE Pipe Sizes
| Nominal Pipe Size (IPS) | Average Outside Diameter (in) | DR17 Wall Thickness (in) | DR11 Wall Thickness (in) | Typical Applications |
|---|---|---|---|---|
| 3″ | 3.50 | 0.206 | 0.318 | Small irrigation systems |
| 4″ | 4.50 | 0.265 | 0.409 | Water service lines |
| 6″ | 6.63 | 0.390 | 0.602 | Municipal water systems |
| 8″ | 8.63 | 0.507 | 0.784 | Industrial and mining pipelines |
| 10″ | 10.75 | 0.632 | 0.977 | High-flow water transport |
| 12″ | 12.75 | 0.750 | 1.159 | Municipal infrastructure |
| 14″ | 14.00 | 0.824 | 1.273 | Large-scale industrial systems |
| 16″ | 16.00 | 0.941 | 1.455 | Mining and dredging |
| 18″ | 18.00 | 1.059 | 1.636 | Large transmission lines |
| 20″ | 20.00 | 1.176 | 1.818 | Major infrastructure projects |
| 24″ | 24.00 | 1.412 | 2.182 | High-capacity pipelines |
| 30″ | 30.00 | 1.765 | 2.727 | Large industrial transport |
| 36″ | 36.00 | 2.118 | 3.273 | Major municipal systems |
| 42″ | 42.00 | 2.471 | 3.818 | Large-scale water transfer |
| 48″ | 48.00 | 2.824 | — | Specialized infrastructure |
Pipe dimensions are manufactured in accordance with ASTM F714 and AWWA C906 standards.
IPS vs DIPS HDPE Pipe
In North America:
- IPS (Iron Pipe Size) accounts for roughly 95% of HDPE pipe applications.
- DIPS (Ductile Iron Pipe Size) is used in a smaller percentage of municipal water systems.
- Metric-sized HDPE pipe is rarely used in standard North American projects.
IPS pipe sizing is preferred because it aligns with many existing fittings, valves, and infrastructure systems used throughout Canada and the United States.
How to Choose the Right HDPE Pipe Size
Selecting the proper HDPE pipe dimensions depends on three main factors.
1. Pressure Requirements
Always match the SDR rating to your operating pressure. Higher pressure systems require thicker pipe walls and lower SDR numbers.
For example:
- DR17 → 125 psi
- DR11 → 200 psi
- DR9 → 250 psi
2. Flow Requirements
Larger pipe diameters move more fluid with lower friction loss. High-flow systems often require larger IPS sizes such as:
- 8″ IPS
- 10″ IPS
- 12″ IPS
- 14″ IPS and above
3. Application Type
Different industries require different HDPE pipe specifications:
| Application | Common IPS Sizes |
|---|---|
| Residential irrigation | 3″–4″ |
| Agricultural systems | 4″–8″ |
| Municipal water mains | 6″–16″ |
| Mining and slurry lines | 10″–24″ |
| Dredging operations | 12″–36″+ |
| Industrial process piping | 6″–24″+ |
Common HDPE Pipe Applications
HDPE pipe is widely used because it is flexible, corrosion-resistant, and extremely durable.
Small Projects
Smaller IPS HDPE pipe sizes are commonly used for:
- Residential irrigation
- Farm water systems
- Small drainage projects
Typical sizes:
- 3″
- 4″
Medium-Sized Infrastructure
Municipal and industrial systems often use:
- 6″ IPS
- 8″ IPS
- 10″ IPS
These sizes are popular for:
- City water lines
- Wastewater systems
- Force mains
- Industrial transport

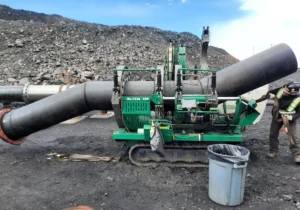

Large-Scale Projects
Mining, dredging, and high-volume transfer systems require large-diameter HDPE pipe such as:
- 12″
- 14″
- 18″
- 24″
- 36″+
These systems are designed to move high volumes efficiently over long distances.
Why PE4710 HDPE Pipe Is Popular
PE4710 HDPE pipe has become the standard for many North American applications because it offers:
- High pressure capability
- Excellent chemical resistance
- Long service life
- Superior flexibility
- Strong resistance to cracking and corrosion
It is commonly specified for:
- Municipal infrastructure
- Water transmission
- Industrial processing
- Natural gas distribution
- Mining operations
Conclusion
Understanding HDPE pipe dimensions starts with understanding IPS sizing and SDR ratings. In North America, IPS-sized HDPE pipe is the industry standard for the vast majority of applications.
By selecting the proper IPS size and SDR rating, you can ensure your system delivers the flow, pressure performance, and durability your project requires.
For complex installations, large-diameter systems, or custom HDPE applications, working with experienced professionals can help ensure the right specification for long-term performance.
